Duct Adapter

For GLACIÄR X5
  • Includes all necessary tools
  • Weld or Braze probe mounting
  • For GLACIÄR X5

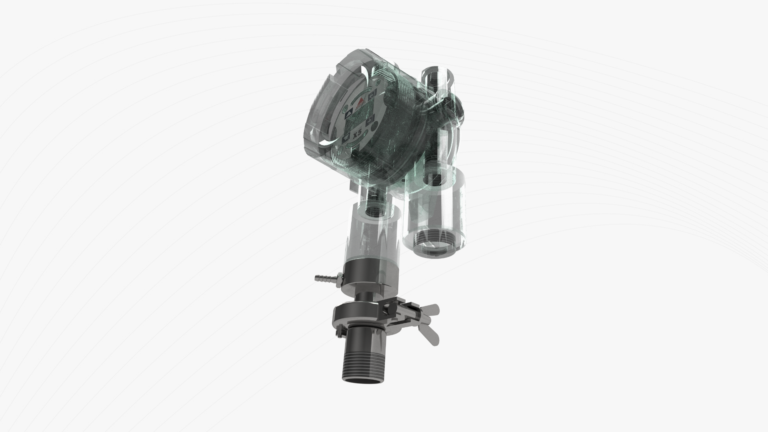

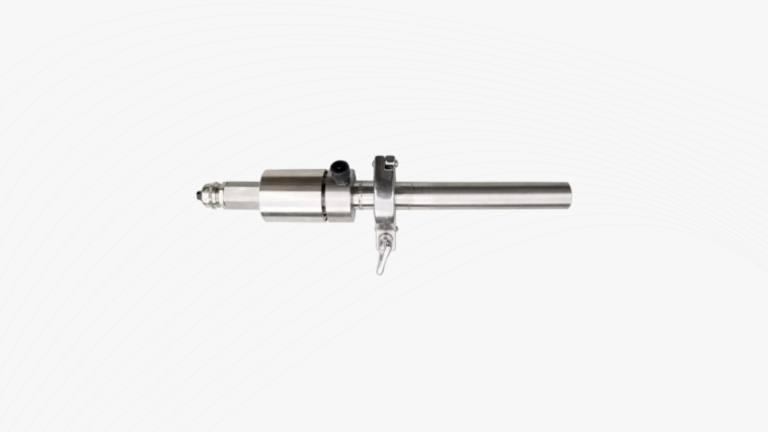

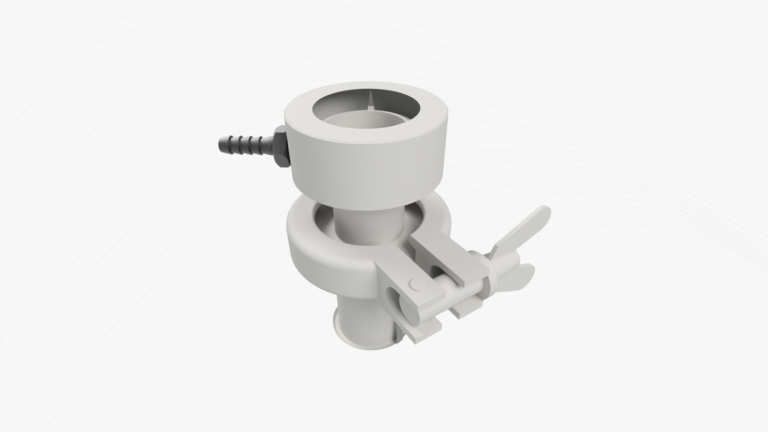

Type 3 and Type 5 duct adaptors rely on gas diffusion to the detector. Typical applications are head space monitoring in tanks, vessels or duct work. The clamp flange arrangement allows easy removal of the detector for service. Internal baffles protect the detector.

Specification Detail
Max Flow 20 m/s
Min Process Temp 3°C
Max Process Temp 55°C
Humidity 100% RH Non Condensing
Part Number Model Details PG
3500-0129 GLACIÄR X5 Type 3 Duct Adaptor welding Welding, steel G
3500-0104 GLACIÄR X5 Type 5 Duct Adaptor BSP 1” BSP threading, steel G

GLACIÄR X5 Refrigerant Gas Detector

Learn more...

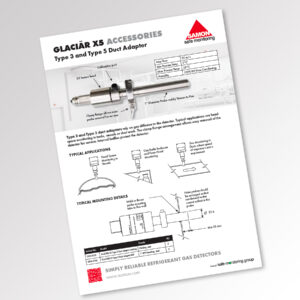

Type 3 and Type 5 Duct Adapter Datasheet

Download Type 3 and Type 5 Duct Adapter Datasheet
