GLACIÄR RM
Next Generation Room Monitoring

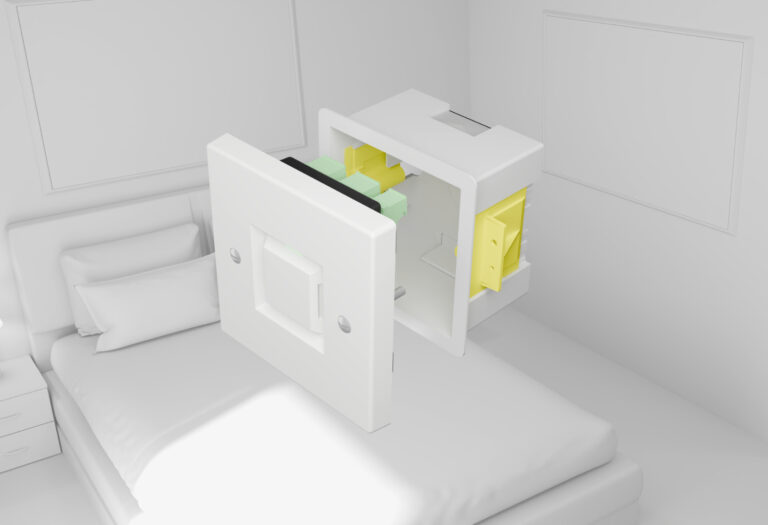

- Fits inside standard electrical back box
- Reliable and accurate NDIR sensor
- Modbus RS485 interface
- Visual status indicators and audible alarms
- Wi-Fi access point for setup and maintenance
Reliable Leak Detection for Occupied Spaces
The GLACIÄR RM is purpose-built to provide early refrigerant leak detection in aesthetic, occupied environments. Leveraging accurate infrared (NDIR) sensor technology and smart service features, they are ideal for use with VRF air conditioning systems in hotel rooms, offices, apartments, care homes, prisons and light commercial spaces.

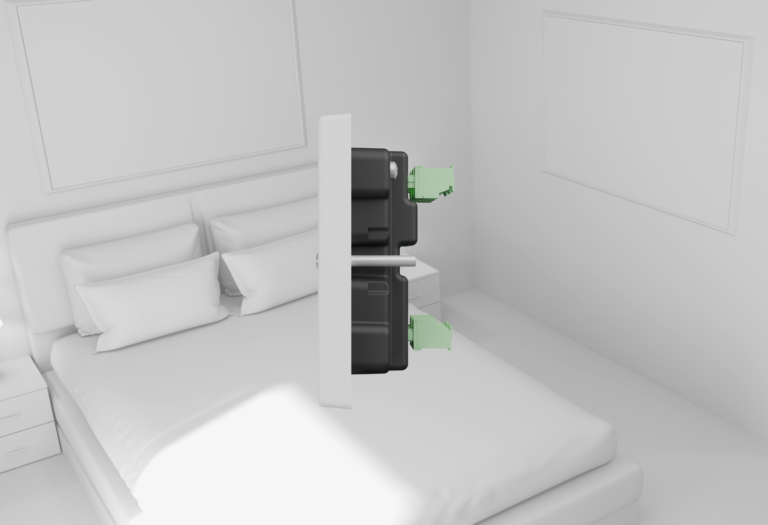

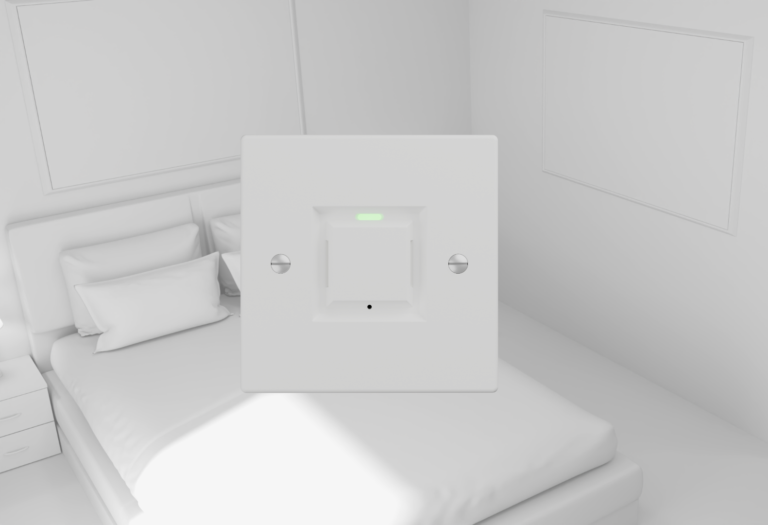

The flushmounted GLACIÄR RM integrates seamlessly into walls, delivering effective refrigerant detection without compromising room aesthetics. Each unit comes factory pre-configured to monitor refrigerant levels safely and discreetly.
Easy maintenance
The GLACIÄR RM includes a built-in WiFi access point, enabled using the service button on the front of the unit. Once active, any standard web browser on a phone, tablet, or laptop can be used to view operating status, adjust settings, and carry out tests.
The same status information, configuration options, and test functions are also available via the Modbus RS485 interface.
The unit is supplied pre-configured for most common applications. Where changes are needed, settings can be adjusted through the web interface or Modbus, allowing the GLACIÄR RM to be easily adapted to suit the installation.
GLACIÄR X5 can be delivered with one or two sensors - integrated or remote.
The following sensor options are available:
Model Types
NH3
GLACIÄR X5 NH3 0-100 ppm sensor module
GLACIÄR X5 NH3 0-500 ppm sensor module
GLACIÄR X5 NH3 0-5000 ppm sensor module
GLACIÄR X5 NH3 0-100 ppm Remote sensor module
GLACIÄR X5 NH3 0-500 ppm Remote sensor module
GLACIÄR X5 NH3 0-1000 ppm Remote sensor module
GLACIÄR X5 NH3 0-5000 ppm Remote sensor module
CO2
GLACIÄR X5 CO2 0-5000 ppm sensor module
GLACIÄR X5 CO2 0-5 % vol sensor module
GLACIÄR X5 CO2 0-5 % vol Remote sensor module
IRR group (see gas types section for details)
GLACIÄR X5 0-2000 ppm sensor module
GLACIÄR X5 0-2000 ppm Remote sensor module
R1 group (see gas types section for details)
GLACIÄR X5 0-1000 ppm sensor module
GLACIÄR X5 0-1000 ppm Remote sensor module
R2 group (see gas types section for details)
GLACIÄR X5 1000-10 000 ppm sensor module
GLACIÄR X5 1000-10000 ppm Remote sensor module
IRF
GLACIÄR X5 Flammable gas 0-100%LEL sensor module
GLACIÄR X5 Flammable gas 0-100%LEL Remote sensor module
TECHNICAL DATA
Sensor type | Infrared (NDIR) |
Target gases | R32 or R410a (specify at order) |
Measurement range | R32: 50% LFL |
Accuracy | ± 10% |
Response time (T90) | ≤30 seconds |
Power supply | 12-24 VDC/VAC, max 3W |
Outputs | 2 x SPDT relays (1A @ 24VDC) |
Interface | Modbus RTU over RS485 + Wi-Fi (service only) |
Visual indicators | LED (Red/Green/Orange/Blue) |
Audible alert | 85 dB buzzer @ 10 cm |
Mounting options | Flush (RM) |
Protection class | IP21 |
Dimensions | 86 x 86 mm faceplate, 32–38 mm depth |
| Part Number | Product Description |
| 3500-0085 | Sun Shade |
| 3500-0031 | ATEX M20 Dome Stopping Plug |
| 3500-0086 | Pole Clamp |
| 3500-0030 | ATEX Cable Gland |
| 3500-0087 | Tool Kit (Magnetic Wand) |
| 3500-0088 | Gas Collector Cone |
| 3500-0089 | Protection Filter Disk |
| 3500-0090 | ATEX Splash Guard |
| 3500-0091 | Spare Plug in PCB set |
| 3500-0092 | Replacement Base |
| 3500-0093 | Spare X5 ATEX Housing |
| 3500-0094 | Calibration Kit |
| Article Number | Model | Details |
| 3101-0001 | GLACIÄR RM R410a | IR, R410a, 7% Vol |
| 3101-0002 | GLACIÄR RM R32 | IR, R32, 50% LFL |
GLACIÄR X5 support the following gas types:
NH3
CO2
IRR
R22, R32, R123, R125, R134A, R227, R404A, R407A, R407F, 410A, 417A, R422D, R448A, R449A, R452B, R507, R513A, R1233zd, R1234yf, R1234ze
R1
R407C, R22, R134A, R404A, R410
R2
R32, R22, R1234yf, R410A, R1234ze, R290, R454B, R404A
