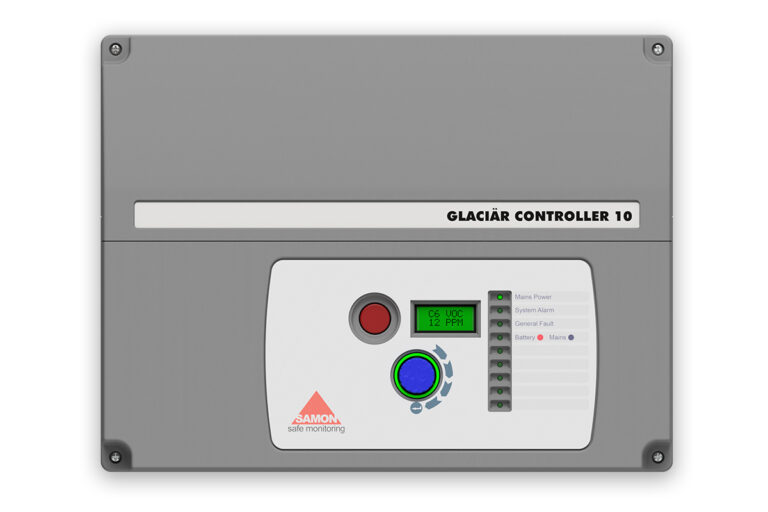

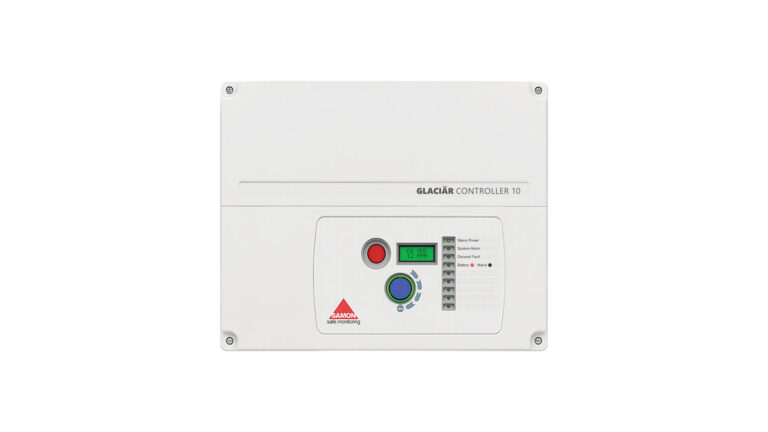

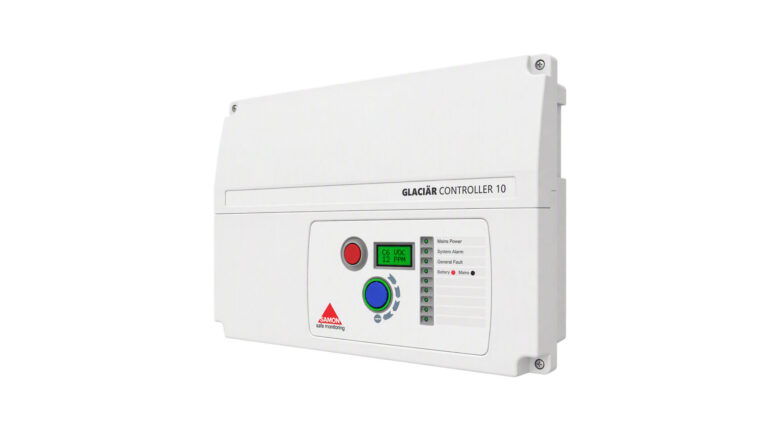

GLACIÄR Controller 10

Gas Detection Control Panel
  • Connects up to 10 gas detectors
  • Colour-changing LCD display with jog wheel navigation
  • Built-in Wi-Fi for service and information
  • Power, fault and system alarm LEDs
  • Built-in 85 dB buzzer and panic button
  • Cable entries along the top, bottom or rear
  • Flush or rear wall mounting
  • Integrates with existing BMS via RS485 Modbus

GLACIÄR CONTROLLER 10, the easy way to manage up to ten gas detectors from one central point. A colour-changing LCD display and intuitive jog wheel give you clear status at a glance, while built-in Wi-Fi and BMS integration make service and monitoring effortless.

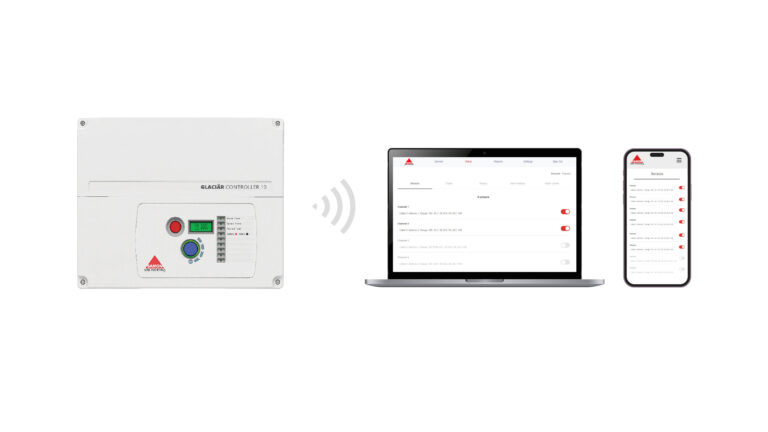

GLACIÄR CONTROLLER 10 has a built-in Wi-Fi access point for quick setup and maintenance. Simply connect with any standard web browser on your phone, tablet or laptop to view operating status, adjust settings and carry out tests, with no special software needed.

Model Details Order Code
GLACIÄR Controller 10 Manage up to ten gas detectors 6300-0001

Output

Relays

10 Configurable SPCO 4A non-inductive 1 Fault SPCO 4A non-inductive 1 Solid State Beacon Buzzer Output 1 Extra Relay for any alarm

Other

Extra I/O cards can be added to expand capability

Inputs

Analogue

10

I/O

Buzzer

85dB @ 100mm (Mutable)

Modbus

1 x RS485 Ports Modbus (TCP/IP Option Available)

Other

Dedicated E-Stop/Slam Switch Input Dedicated Fire System Interlock

Power Supply

Operating voltage

175W PSU @ 110VAC Nominal (88 to 127 V AC 50/60Hz by selection)

175W PSU @ 230VAC Nomimal (190 to 260V AC 50/60Hz by selection)

Enclosure

Weight

1.75kg / 61,73 oz

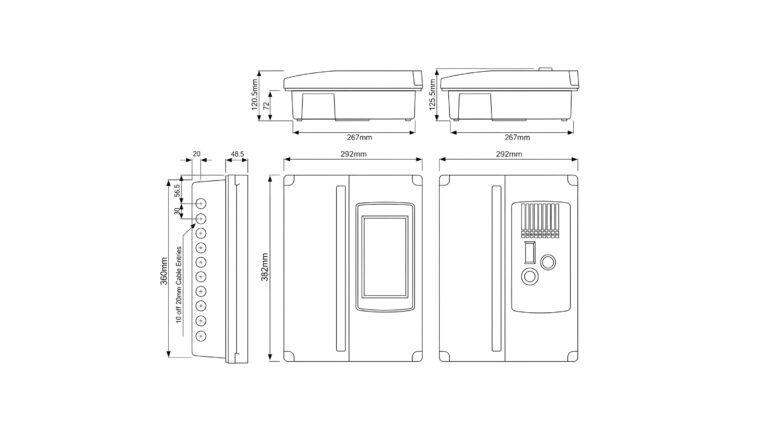

Dimensions

15.04” x 11.50” x 4.94”

Humidity

0% to 95% Rh Non-Condensing

Ingress Protection

IP54

Housing Material

ABS

Environmental

Temperature

-5° to 40° Celsius / 23° to 104° Fahrenheit. At 55° Celsius / 131° Fahrenheit De-Rate PSU Output by 30%

GLACIÄR CONTROLLER 10, the easy way to manage up to ten gas detectors from one central point. A colour-changing LCD display and intuitive jog wheel give you clear status at a glance, while built-in Wi-Fi and BMS integration make service and monitoring effortless.

GLACIÄR CONTROLLER 10 has a built-in Wi-Fi access point for quick setup and maintenance. Simply connect with any standard web browser on your phone, tablet or laptop to view operating status, adjust settings and carry out tests, with no special software needed.

ModelDetailsOrder Code
GLACIÄR Controller 10Manage up to ten gas detectors6300-0001

Output

Relays

10 Configurable SPCO 4A non-inductive
1 Fault SPCO 4A non-inductive
1 Solid State Beacon Buzzer Output
1 Extra Relay for any alarm

Other

Extra I/O cards can be added to expand capability

Inputs

Analogue

10

I/O

Buzzer

85dB @ 100mm (Mutable)

Modbus

1 x RS485 Ports Modbus (TCP/IP Option Available)

Other

Dedicated E-Stop/Slam Switch Input
Dedicated Fire System Interlock

Power Supply

Operating voltage

175W PSU @ 110VAC
Nominal (88 to 127 V AC 50/60Hz by selection)

175W PSU @ 230VAC
Nomimal (190 to 260V AC 50/60Hz by selection)

Enclosure

Weight

1.75kg / 61,73 oz

Dimensions

15.04” x 11.50” x 4.94”

Humidity

0% to 95% Rh Non-Condensing

Ingress Protection

IP54

Housing Material

ABS

Environmental

Temperature

-5° to 40° Celsius / 23° to 104° Fahrenheit. At 55° Celsius / 131° Fahrenheit De-Rate PSU Output by 30%
