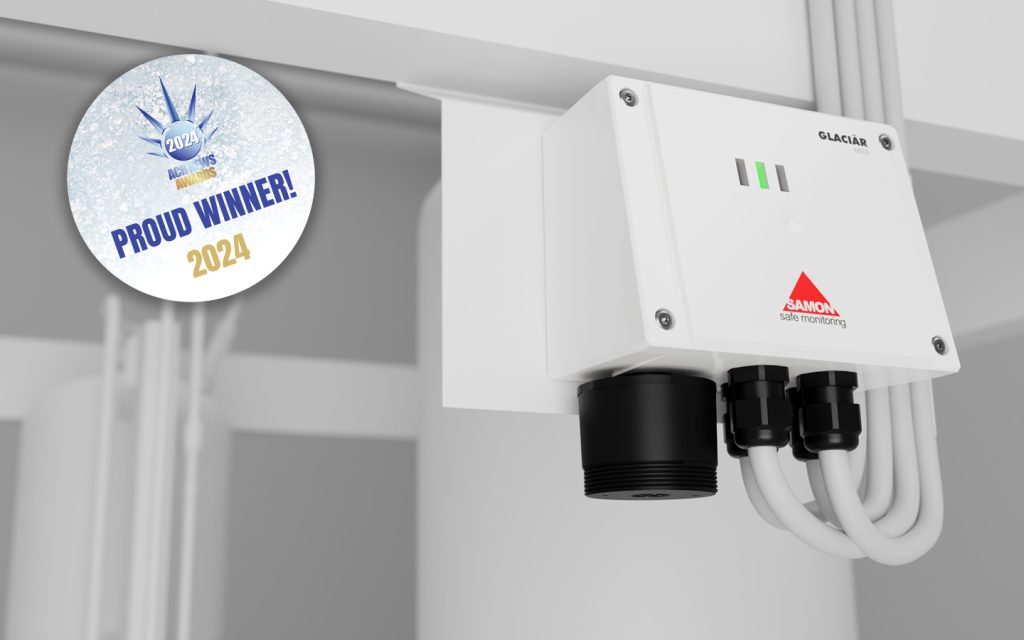

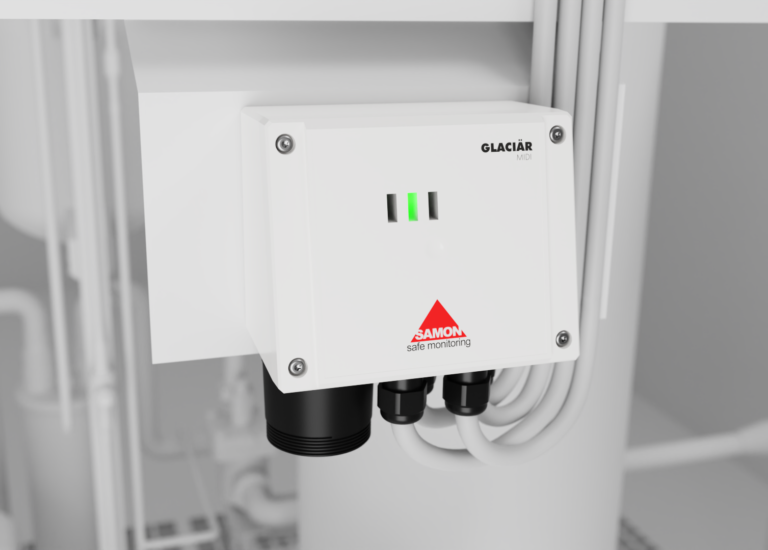

GLACIÄR MIDI
Refrigerant Gas Detector
- Ideal for machinery rooms, cold rooms
- Designed with over 30 years of industry experience
- User-friendly setup and maintenance via digital app
- No special tools
- Robust design ensures reliable performance
- System integration via Modbus, analogue output, and relay contacts
- Easy installation
GLACIÄR MIDI detects leaks of refrigerant gases that are harmful to the
environment we live in, and harmful to the environments that people work in.
By mitigating these leaks, our planet is protected against greenhouse gas
emissions, our colleagues stay safe and healthy, and property is protected against the risks of system failure and explosion.
SENSOR SELECTION
- All sensor types compatible with the GLACIÄR MIDI detector
platform - HFC/HFO blends detected via just two broad-band sensor variants
- CO2 detection via infra-red sensor
- Electrochemical sensors for NH3 detection
- R290 (propane) & hydrocarbon sensor
EASY INSTALLATION
- Comes ready to install with standard configuration
- Multiple cable glands located for easy access to power connections & output terminals
- Pluggable screw terminals for simple installation on site
- IP67-rated enclosure & -40°C - + 50°C operating range suitable for all
refrigeration environments
MULTIPLE CONFIGURABLE OUTPUTS
- Alarm indication via relay contacts for high- and low-alarm levels
- Interface to control systems via
- Modbus RTU over RS485 & selectable analogue output range
- Visual health-check via high-intensity status LEDs
- Selectable dedicated fault relay
INTELLIGENT SERVICE & MAINTENANCE
- Service counter tells you when service is needed
- Bluetooth® connectivity to app for configuration & calibration (Android™ & iOS)
- Analogue configuration via service-wheel & magnetic switch
- Pre-calibrated sensor module replacements
- Sensor lifetime counter
GLACIÄR MIDI can be delivered with both integrated and remote sensor options.
The following sensor options are available:
CO2
GLACIÄR MIDI IR CO2 10000ppm
GLACIÄR MIDI Remote IR 10000ppm
Group 1: HFO/HFC (see gas types section for details)
GLACIÄR MIDI SC HFC/HFO Group 1 1000ppm
GLACIÄR MIDI Remote SC HFC/HFO Group 1 1000ppm
Group 2: HFO/HFC (see gas types section for details)
GLACIÄR MIDI SC HFC/HFO Group 2 1000ppm
GLACIÄR MIDI SC HFC/HFO Group 2 1000ppm
NH3
GLACIÄR MIDI EC NH3 100ppm
GLACIÄR MIDI EC NH3 1000ppm
GLACIÄR MIDI EC NH3 5000ppm
GLACIÄR MIDI Remote EC NH3 100ppm
GLACIÄR MIDI Remote EC NH3 1000ppm
GLACIÄR MIDI Remote EC NH3 5000ppm
Group 3: R290 (see gas types section for details)
GLACIÄR MIDI SC R290 Group 3 4000ppm
GLACIÄR MIDI Remote SC R290 HC 4000ppm
TECHNICAL DATA
Analogue Output | |
Selectable analogue output range | 1...5V; 0...10V; 2...10V; 4...20mA (default) |
Modbus RTU over RS-485 | |
Connection | Galvanically isolated (optocoupler) |
Baud rate | 9,600 or 19,200 (default) |
Data bits | 8 |
Parity | None (default), odd, even |
Stop bits | 1 or 2 (default) |
Other Interfaces | |
Visible indicator | Multi-color Status LED |
Bluetooth® | BLE (Service app) |
Relays | 2 SPDT 1 A at 24 VAC/VDC, resistive load |
Switches | Service wheel (x1) and Magnetic (x1) |
Analogue service output | 0-10VDC |
Power Supply | |
Operating voltage | 15 to 24 VDC; 24 V AC/DC, 50/60 Hz (Selected automatically) |
Operating effect and current, max. | 4W, 170mA @ 24VDC |
Wiring | |
Power supply | 28 to16 AWG / 0.75 mm² to 1.5 mm² |
Analogue signals and relays | 28 to16 AWG / 0.75 mm² to 1,5 mm² |
Modbus network | 3-core, 2 twisted pair + ground, shielded cable with 120 Ω characteristic impedance, 24 to16 AWG / 0.25 mm² to 1.5 mm², maximum length 300 meters. |
Cable gland | 4 x M16, 4-8mm cable outer diameter |
Cable rating | UL 2556 VW-1 or equivalent |
Dimensions | |
Enclosure Size (W×H×D) | Built-In: 134x102x54 mm Remote, main enclosure: 134x102x54 mm Remote, sensor enclosure: 103x50 mm |
Weight | Built-In: 430 g Remote: 660 g |
Environmental | |
Operating temperature | -40° to 50° Celsius |
Storage temperature | -40° to 50° Celsius |
Humidity | 5 to 90 %RH, non-condensing |
Enclosure protection | IP67 |
Enclosure material | Polycarbonate |
PRODUCT NAME
Short Description
Part no.: XXXXXXX
PRODUCT NAME
Short Description
Part no.: XXXXXXX
Order Code | Model | Details | PG |
CO₂ |
|
| |
31-210-32 | GLACIAR MIDI IR CO₂ 10000ppm | 0-10000 ppm, 15.. 24VDC; 24VAC/DC, máx. 4 W , 170mA @24VDC | G |
31-510-32 | GLACIAR MIDI Remote IR CO2 10000ppm | 0-10000 ppm, 15.. 24VDC; 24VAC/DC, máx. 4 W , 170mA @24VDC | G |
HFO/HFC | Group 1 | R32 / R407A / R407C / R407F / R410A / R448A / R449A / R452A / R452B / R454A / R454B / R454C / R455A / R464A / R465A / R466A / R468A / R507A | |
31-220-12 | GLACIAR MIDI SC HFC/HFO Group 1 1000ppm | 0-1000 ppm, 15.. 24VDC; 24VAC/DC, max. 4 W , 170mA @24VDC | G |
31-520-12 | GLACIAR MIDI Remote SC HFC/HFO Group 1 1000ppm | 0-1000 ppm, 15.. 24VDC; 24VAC/DC, max. 4 W , 170mA @24VDC | G |
HFO/HFC | Group 2 | R134a / R404A / R450A / R513A / R1234yf / R1234ze / R1233zde | |
31-220-17 | GLACIAR MIDI SC HFC/HFO Group 2 1000ppm | 0-1000 ppm, 15.. 24VDC; 24VAC/DC, max. 4 W , 170mA @24VDC | G |
31-520-17 | GLACIAR MIDI Remote SC HFC/HFO Group 2 1000ppm | 0-1000 ppm, 15.. 24VDC; 24VAC/DC, max. 4 W , 170mA @24VDC | G |
NH₃ |
|
| |
31-250-22 | GLACIAR MIDI EC NH₃ 100ppm | 0-100 ppm, 15.. 24VDC; 24VAC/DC, max. 4 W , 170mA @24VDC | G |
31-250-23 | GLACIAR MIDI EC NH₃ 1000ppm | 0-1000 ppm, 15.. 24VDC; 24VAC/DC, max. 4 W , 170mA @24VDC | G |
31-250-24 | GLACIAR MIDI EC NH₃ 5000ppm | 0-5000 ppm, 15.. 24VDC; 24VAC/DC, max. 4 W , 170mA @24VDC | G |
31-550-22 | GLACIAR MIDI Remote EC NH₃ 100ppm | 0-100 ppm, 15.. 24VDC; 24VAC/DC, max. 4 W , 170mA @24VDC | G |
31-550-23 | GLACIAR MIDI Remote EC NH₃ 1000ppm | 0-1000 ppm, 15.. 24VDC; 24VAC/DC, max. 4 W , 170mA @24VDC | G |
31-550-24 | GLACIAR MIDI Remote EC NH₃ 5000ppm | 0-5000 ppm, 15.. 24VDC; 24VAC/DC, max. 4 W , 170mA @24VDC | G |
R290 | Group 3 | R290 / R50 / R600a / R1150 / R1270 | |
31-290-13 | GLACIAR MIDI SC R290 / Group 3 4000ppm | 0-4000 ppm, 15.. 24VDC; 24VAC/DC, max. 4 W , 170mA @24VDC | G |
31-590-13 | GLACIAR MIDI Remote SC R290 HC 4000ppm | 0-4000 ppm, 15.. 24VDC; 24VAC/DC, max. 4 W , 170mA @24VDC | G |
GLACIÄR MIDI support the following gas types:
CO2
NH3
HFO/HFC Group 1:
R32, R407A, R407C, R407F, 410A, R448A, R449A, R452A, R452B, R454A, R454B, R454C, R455A, R464A, R465A, R466A, R468A, R507A
HFO/HFC Group 2:
R134A, R404A, R450A, R513A, R1234yf, R1234ze, R1234zde
R290 Group 3:
R290, R50, R600A, R1150, R1270
We have used our extensive gas detection expertise to make it possible to detact all commonly used refrigerants with only 5 different sensor types, making it simple and easy to select the right detector for your application.
